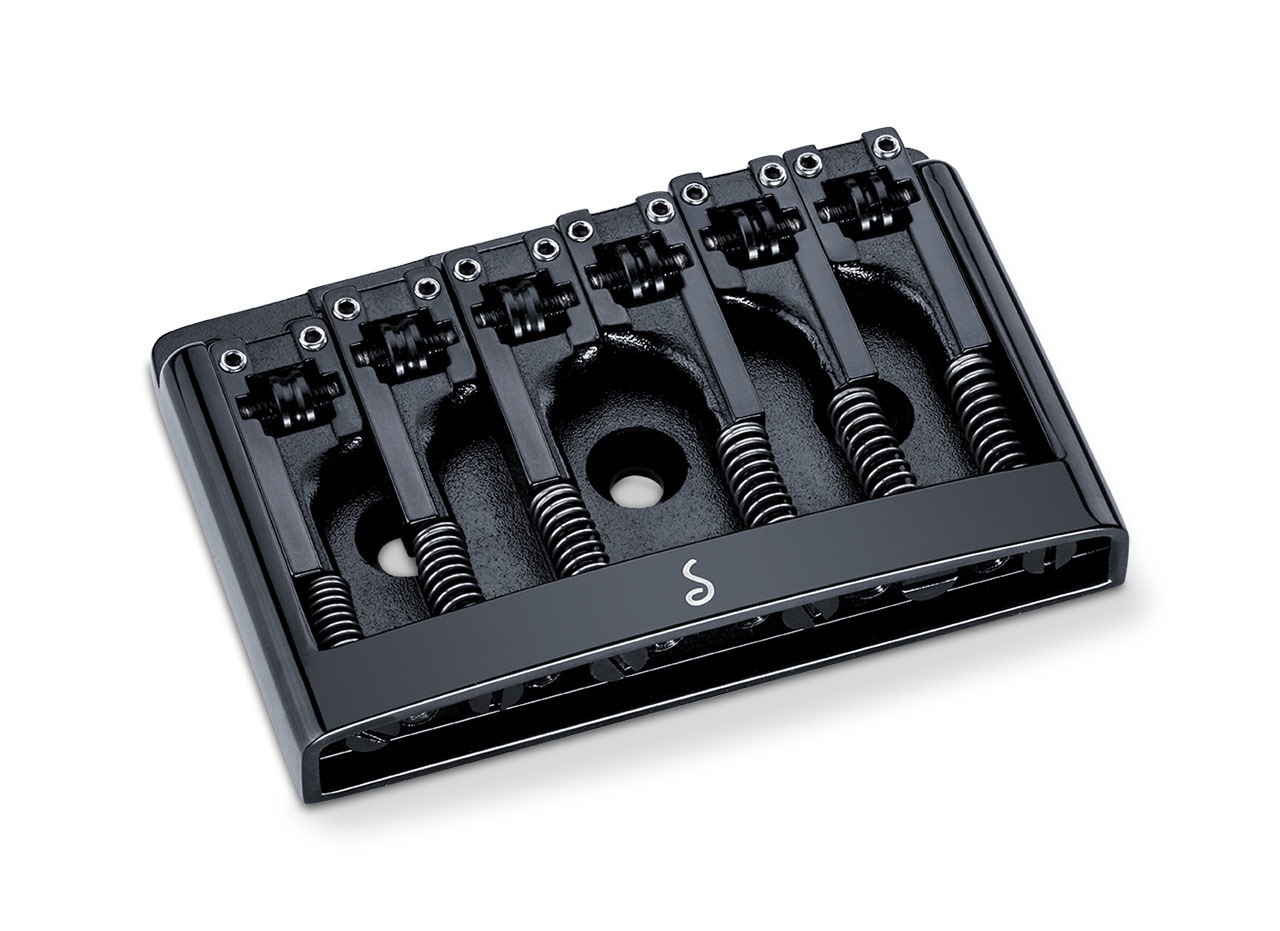

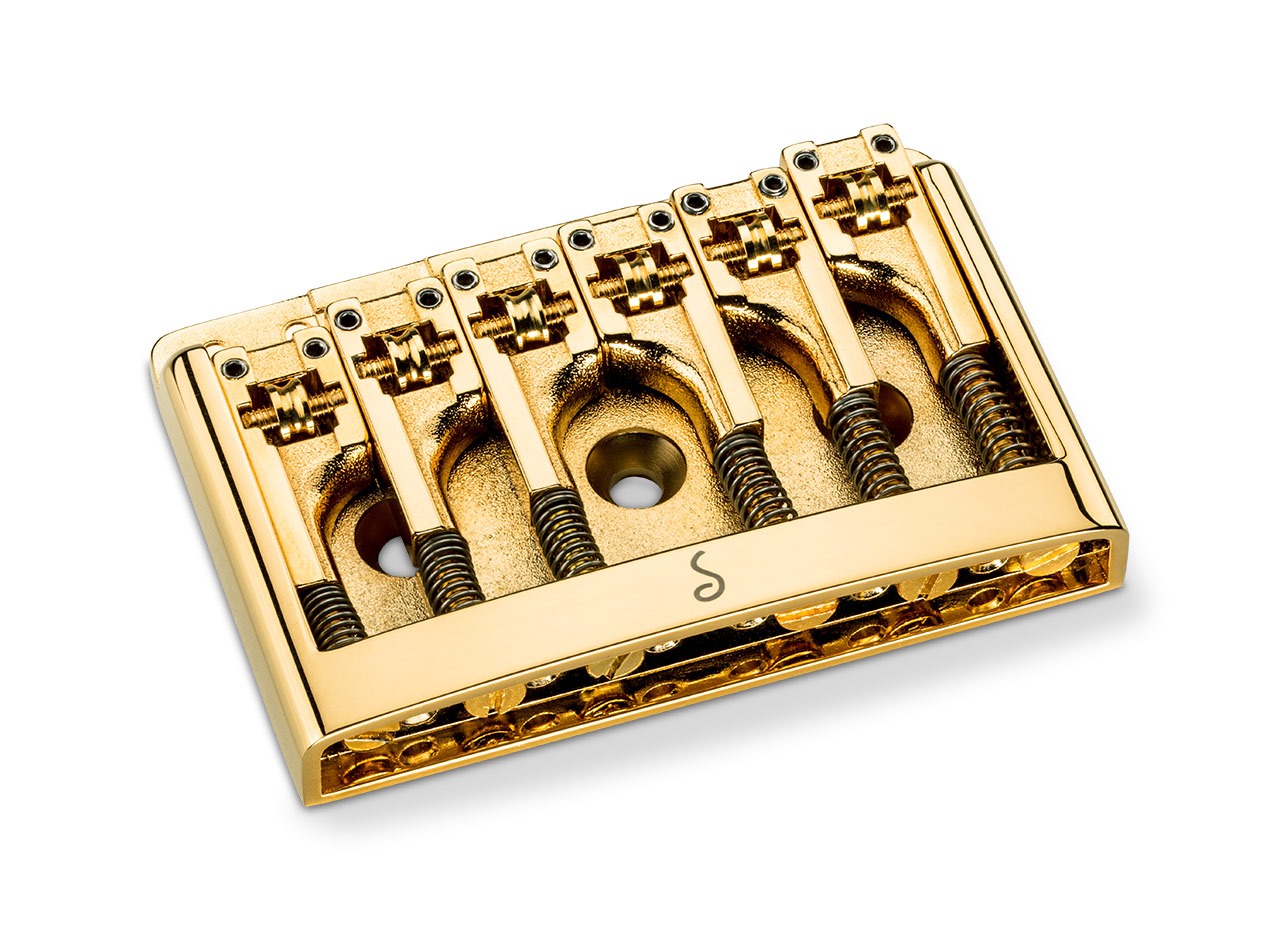

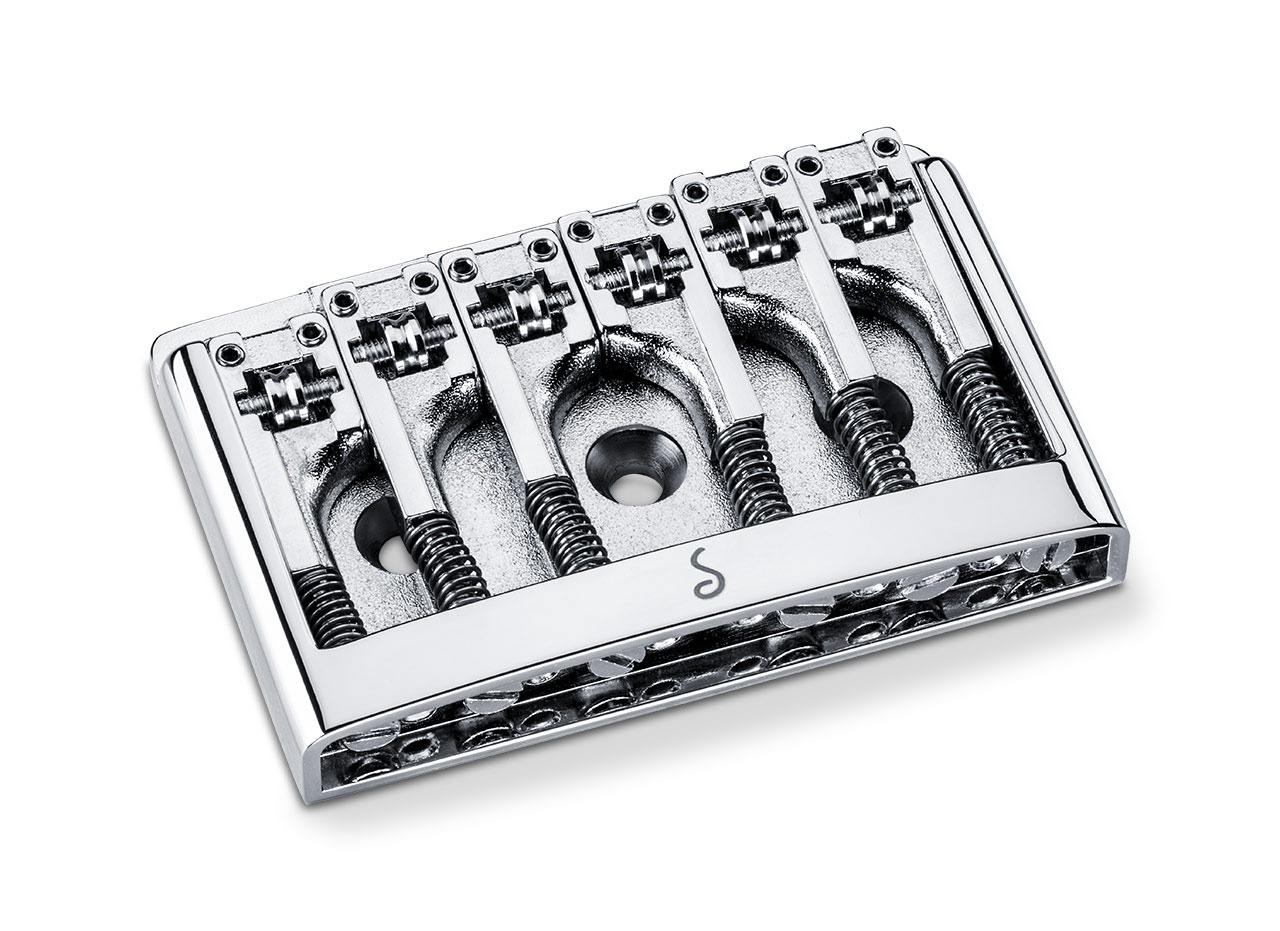

Schaller bridge 3D-6, with roller bridge saddles - chrome, black or gold

€ 94,95 (including VAT 21%)
Delivery 1-2 werkdagen
Product code 230.13*-1
Supplier product code 230.13*

• adjustable string spacing
• strings mount at the rear of the bridge
• no string stoppers needed
• mounting screws and 3 mm thick baseplate included
- Chrome, Black or Gold

Flatmount bridge with adjustable height, intonation and string spacing (roller bridge saddles)

The roller bridge saddles reliably minimize string breakage while maintaining intonation and tuning stability.

3-dimensional adjustment of string height, intonation and string spacing (with roller bridge saddles).

The individual string intonation is set by adjusting the string saddles.

Heavy and precise construction for extra long sustain.

Variable overall height with 3mm spacer.

You can use the screw on the treble side to fix the string saddles in place so that they don't knock together and rattle when aggressive playing techniques are used.

The guitar or bass strings lie on low-friction roller saddles which prevent the strings from breaking.

Comes with 2 different type saddle rollers to suit tone and string bending requirements: wide flat rollers for low strings and tight U-shaped for high strings.

This means the string spacing can be adjusted flexibly.

All bridges are supplied with a 3mm baseplate and screws as standard.


technical specification

string spacing E-e 50 - 56,5mm, string spacing individual 10 - 11,3mm, string radius 7 - 20“, minimal G/d string height above body 11,1mm, height adjustment 3,5mm, maximum string gauge 52, weight 152g (198g with accessories), for lefty: no


scope of supply

3 mounting screws, 1 Allen key 1.27 mm, 3mm baseplate and screws


technical drawings (without engagement)
