'59 / '63 vintage 11-hole pattern

'59 / '63 11-hole pattern stratocaster pickguard

- zie keuzelijst voor kleuren/opties/prijzen)

230.440 antique white (off-white), 3-ply, 3 single coils (11 screw holes)
230.441 white/black/white, 3-ply, 3 single coils (11 screw holes)
230.442 vintage ivory (greenish), 3-ply, 3 single coils (11 screw holes)

- artikel nr 230.443 is een 2 mm dikke template om je eigen slagplaat te kunnen maken (dus excl. slagplaat materiaal!)

STRATOCASTER PICKGUARD SCREWHOLE INFO
 vintage 8-hole pattern: inception (1954) to mid 1959 (countersunk holes for pickups and switch)
 vintage 11-hole pattern: mid 1959 to mid 1963 (countersunk holes for pickups and switch)
 modern 11-hole pattern: mid 1963 to mid 1970s (countersunk holes for pickups and switch)
 modern 11-hole pattern: mid 1970s to current (non-countersunk holes for pickups and switch)

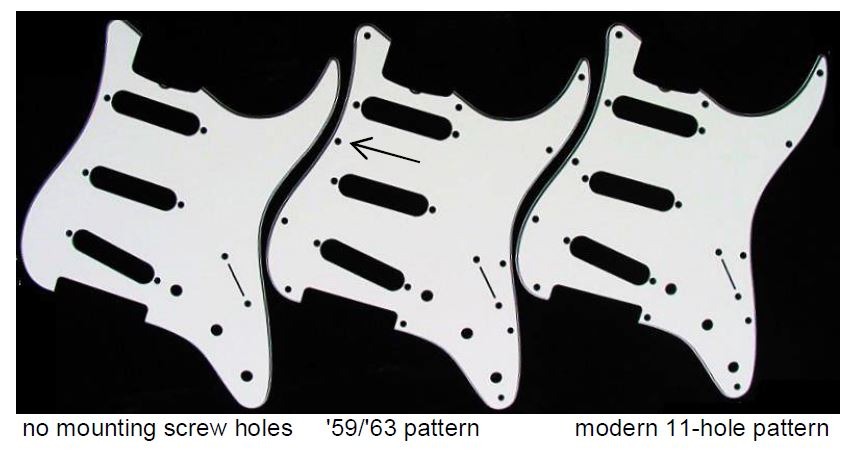

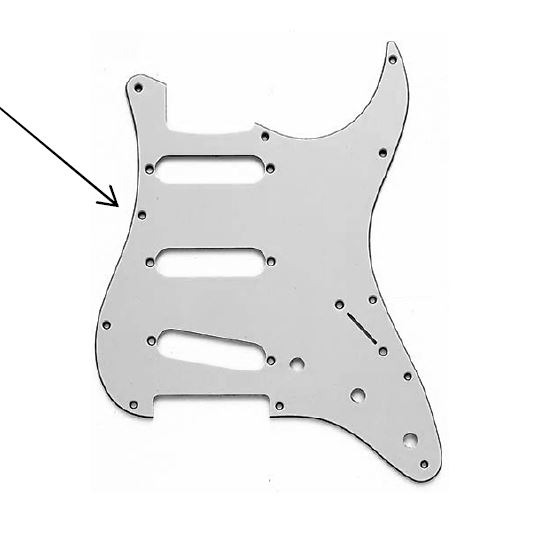

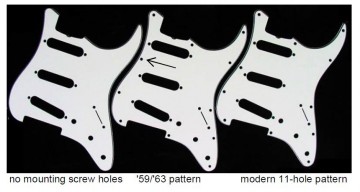

10 of the pickguard screwholes are in the same location as with modern 11-hole pickguards: the pickguard screwhole above the middle pickup is located differently with '59/'63 pickguards (see arrow)
