Stewmac ready-made shaped neck shim for bass

STEWMAC READY-MADE FULL-CONTACT NECK SHIMS

230.403 ready-made shaped neck shim for bass,

maple, .025-degree € 16,⁵⁰

230.404 ready-made shaped neck shim for bass,

maple, .050-degree € 16,⁵⁰

230.405 ready-made shaped neck shim for bass,

maple, .100-degree € 16,⁵⁰

- tapered ready-made hard maple shims (55.50 x 76.10 mm)

for guitar, intended to change/adjust the angle of bolt-on

bass guitar necks

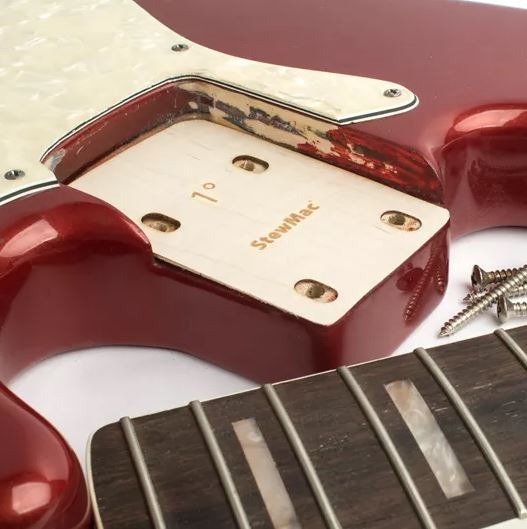

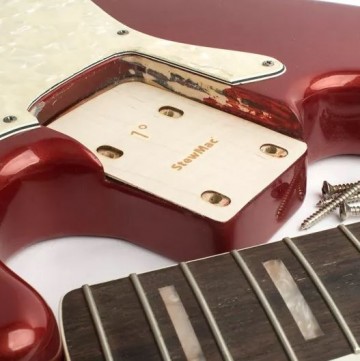

- tapered shims do not leave gaps under the heel of the neck

- these ready-made shims save time and offer full-

contact between neck and body (no loss of tone!)

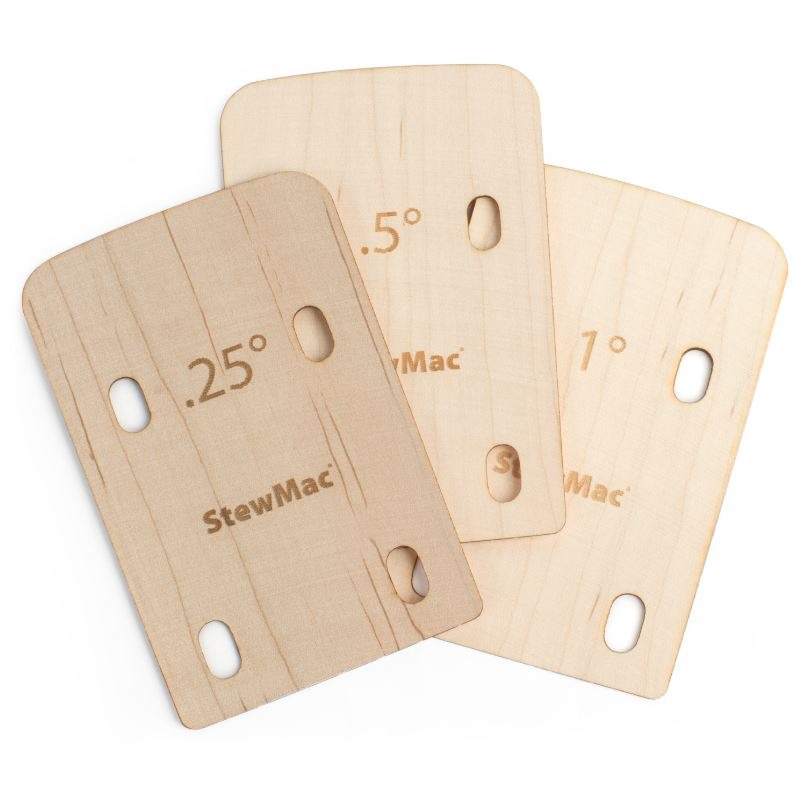

Full contact and precisely tapered: we have 3 different degrees for changing the pitch of any bolt-on neck.

• 0.25-degree shim offers the most versatility. Stacking them will let you really dial in the neck angle you're after.
• 0.5-degree shim is the one you'll reach for most often. It works great on Fender and many other solidbodies.
• 1-degree shim is great for basses with a post mounted bridge.

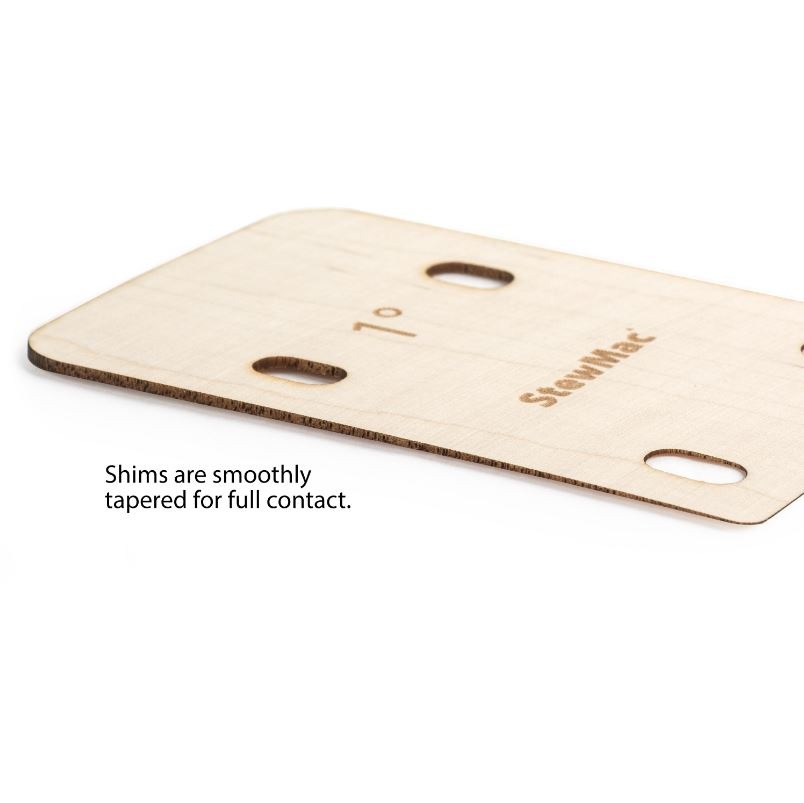

Taper specs (approximate)
0.25-degree shim tapers from 0.030" to 0.019" (0.76mm to 0.48mm)
0.5-degree shim tapers from 0.044" to 0.010" (1.11mm to 0.25mm)
1-degree shim tapers from 0.078" to 0.010" (1.98mm to 0.25mm)

Dimensions
Shaped: 2-1/2" x 3-7/8" (63.50mm x 98.43mm)

Shaped shims fit most neck pockets with a rounded heel.
