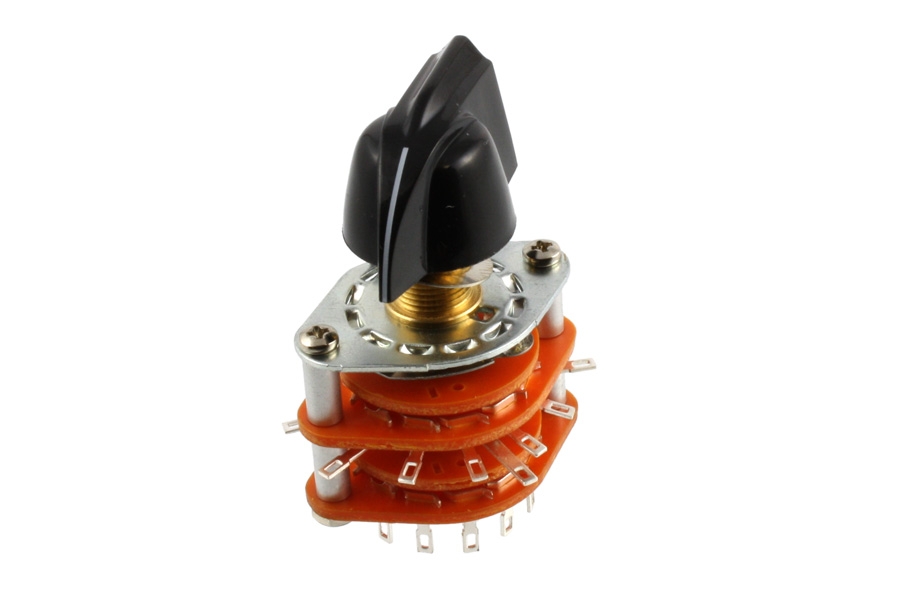

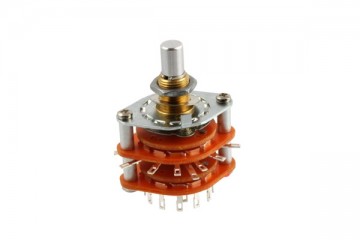

Oak Grigsby 6 position / 4 pole rotary switch, black pointer knob

6 standen draaischakelaar van Oak Grigsby USA.
Eventueel te gebruiken als b.v. Varitone switch (exclusief de weerstanden/condensators!)

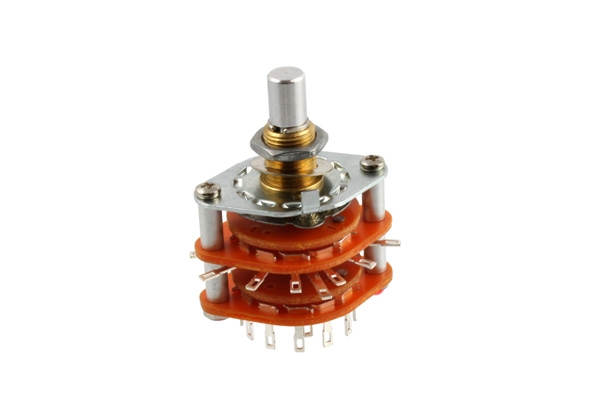

Rotary Switch, 6-Position, 4-Pole, with Black Pointer Knob. Threaded bushing is 3/8" long.

   A rotary Varitone switch attenuates frequencies within a specific range, while passing all other frequencies unaltered resulting in a selection of tones that are increasingly more nasal.

  switch positions 230.819B (Gibson ES-types):

                   1 = bypass

                   2 = .001µF capacitor

                   3 = .003µF capacitor

                   4 = .010µF capacitor

                   5 = .033µF capacitor

                   6 = .022µF capacitor

                   Varitone switch 230.819B offers intriging tones for funky chords and

                   expressive lead lines that go way beyond the regular ES-345 and

                   ES-335 palette (Freddie King, B.B. King).
