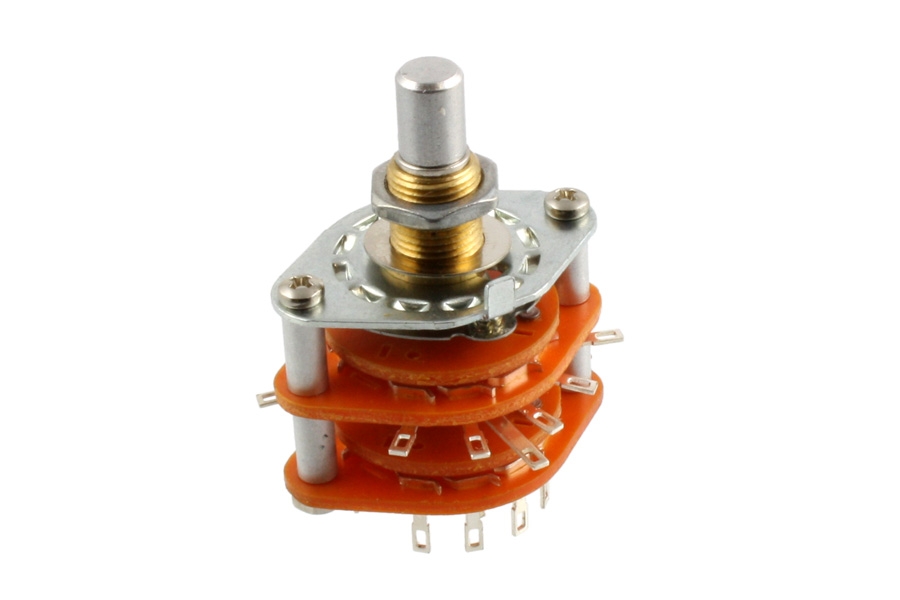

Oak Grigsby 5 position/4 pole rotary switch, solid shaft, with knob

5 standen draaischakelaar.
Allparts 5 position/4 pole rotary switch, solid shaft

switch positions 230.819A (PRS version):

                   1 = neck humbucker

                   2 = outer coils in parallel

                   3 = outer coils in series

                   4 = inner coils in parallel

                   5 = bridge humbucker

                   Varitone switch 230.819A has been designed for use with two

                   4-conductor humbuckers. Please note: outside coils of the pickups

                   must have opposite magnetic polarity for the switch to function properly.

                   (use our Magnetic Polarity Tester 270.060: page 35)
