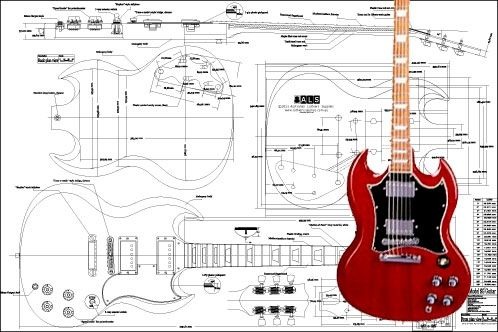

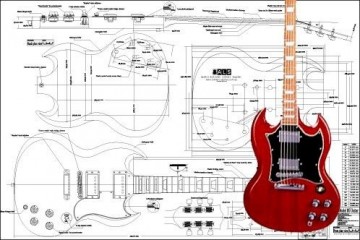

Gibson SG standard blueprint

€ 24,70 (including VAT 21%)
Delivery 1-2 werkdagen
Specifications
Product code 845
Supplier product code 845
Description

Excellently drawn black & white blueprints of famous guitars, using CAD-software.

No need anymore to borrow a copy of your favorite guitar to build it: plans contain all details on a large scale.

Please note: these are professional  XL-sheets containing vintage original specs (most blueprints are 120 x 80 cm).

All parts pictured on plans: actual size.

These are no guitar maker's manuals, just blueprints.

Great help in every workshop!


B L U E P R I N T S  I N C L U D E :

- fret slotting chart
- wiring diagram (if applicable)
- detailed pickguard dimensions
- exact location of truss rod

DISCLAIMER: BLUEPRINTS MAY DEVIATE FROM THE GUITAR (MODEL,
YEAR, BRAND) YOU HAVE IN MIND. FOR EXAMPLE, '60s FENDER TELE-
CASTER SPECS MAY DIFFER FROM A '80s FENDER TELECASTER, HAND-
MADE TELECASTERS, MODIFIED TELECASTERS, OR ASIAN COPIES ETC.
